Description:

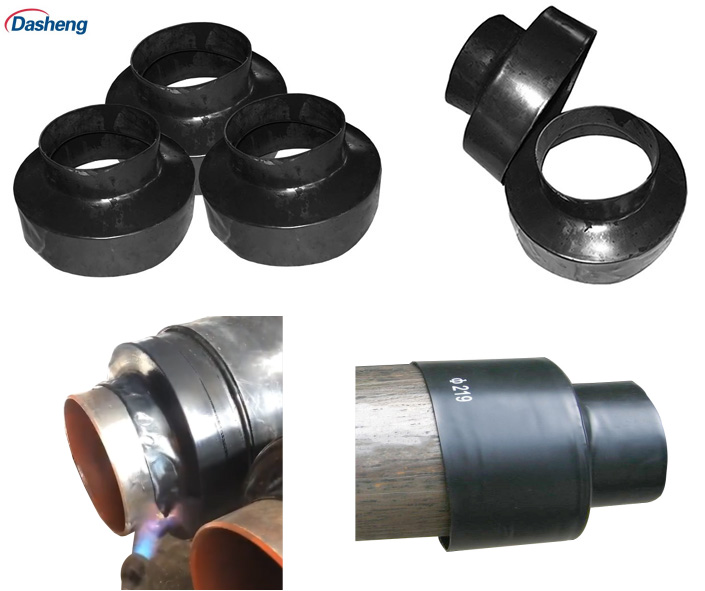

Casing end seal is is a heat-shrinkable, wrap-around sleeve with a very high shrink ratio, specially developed for casing/service pipe sealing.The special adhesive inside the thick-wall assures an excellent bond between the sleeve and bare or pre-coated pipes.
Construction: Two-layer system:
First layer: Visco-elastic waterproof sealant.
Second layer: Radiation cross-linked, polyethylene backing.
Product features/benefits:
• 60% shrinkage ratio – conforms to high transitions Reduces inventory & logistics costs.
• Resists a wide range of environmental and mechanical forces Reliable, moisture-proof seal!
• Specially formulated sealant Ensures a strong bond & tight seal to virtually any substrate. Maintains its elasticity and sealing characteristics over a wide temperature range.
• Sealing adhesive automatically flows and repairs minor mechanical damages .Saves time.
• Usable also when service pipe is not concentric with the casing. Highly versatile.
• No special equipment required Makes installation fast and easy. Keeps installation costs low.
Product selection guide: |
Max operating temperature |
30°C (86°F) |
Compatible line coatings |
PE, PP, FBE, Tape, Coal tar, Asphalt, Plastics |
Min preheat temperature |
60°C (140°F) |
Recommended pipe preparation |
ST3 or SA 2 1 / |
Product properties: |
Backing |
Property |
Test method |
Typical Value |
Bursting strength |
DIN 30672 |
3200 N |
Adhesive |
Softening point |
ASTM E-28 |
78ºC (172ºF) |
Shear strength |
EN12068 |
8 N/cm |
Peel strength |
EN12068 |
9 N/cm |
Product dimensions-Standard Ordering options |
Product thickness |
Backing (as supplied) |
1mm |
Adhesive (as supplied) |
0.6mm |
Application table |
Pipe diameter DN(mm) |
Casing diameter(mm) |
Max Casing diameter |
32 |
92 |
132 |
48 |
108 |
148 |
60 |
120 |
160 |
76 |
136 |
176 |
89 |
149 |
189 |
108 |
168 |
208 |
114 |
174 |
214 |
133 |
193 |
233 |
159 |
219 |
259 |
168 |
228 |
268 |
219 |
279 |
319 |
Size can be made for any specific casing diameter |
