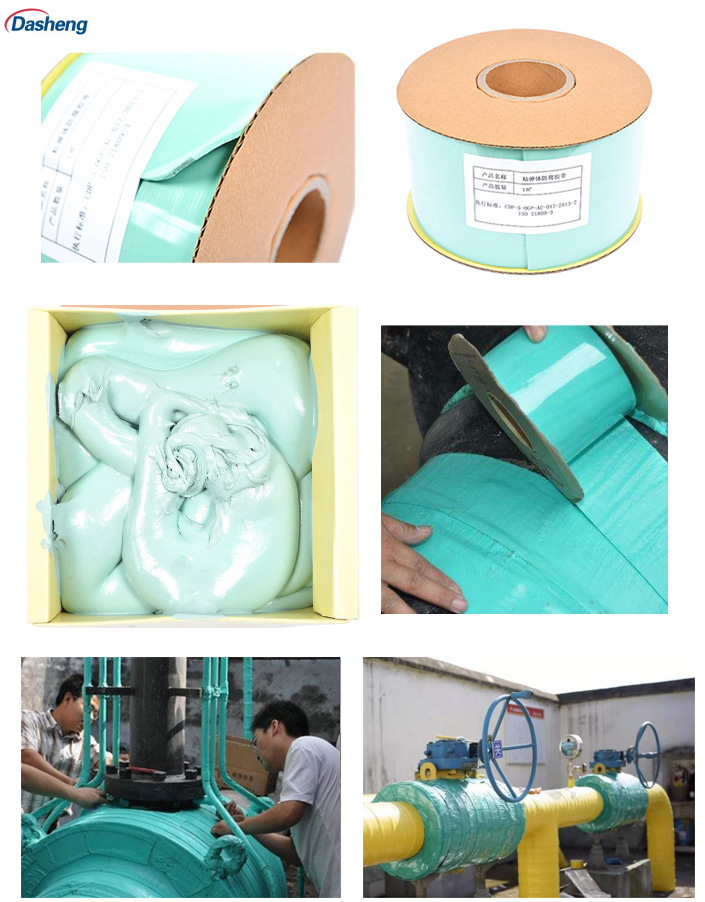

DS-NTD Visco-elastic Sealing Tape

Product description:
DS-NTD visco-elastic sealing tape is is a corrosion protective coating consisting of a modified and reinforced visco-elastic adhesive.

Product features/benefits:
•Adhesion & Creep Resistance:The specially formulated adhesive bonds tenaciously to even the most diffi cult substrates and provides good elevated temperature creep resistance and resistance to soil stresses

•Wide Range of Applications:coating repair on new pipeline construction; transition areas on below ground pipelines; special sections such as bends, tees, fl anges, etc.; rehabilitation of existing pipelines; tanks chimes, etc
•Full System Approach
•Field Friendly:
-Long shelf-life
-Various widths available with convenient package options for ease of inventory
-Fast installation with instant adhesion on steel surfaces without applying primer
-No drying or hardening time
-Self healing ability when slightly damaged due to plastic-elastic properties
-Impermeable to water and oxygen

Product Properties:

Operating Characteristics Test Method Typical Value
Max operating temperature   95°C (203°F)
Compatibility   PE, PP, FBE, PU, Coal tar, Bitumen

Product Properties

Density ASTM D792 1.0 g/cm3
Lap Shear Strength EN 12068 0.02 N/mm²
Glass Transition Temp ASTM D3418 < -20°C
Water Absorption ASTM D570 < 0.05%
Drip Resistance EN 12068 Pass at 95°C

Product dimensions-Standard Ordering options

Thickness 1.8mm
Length 50m
Width 50mm,100mm,200mm,300mm
