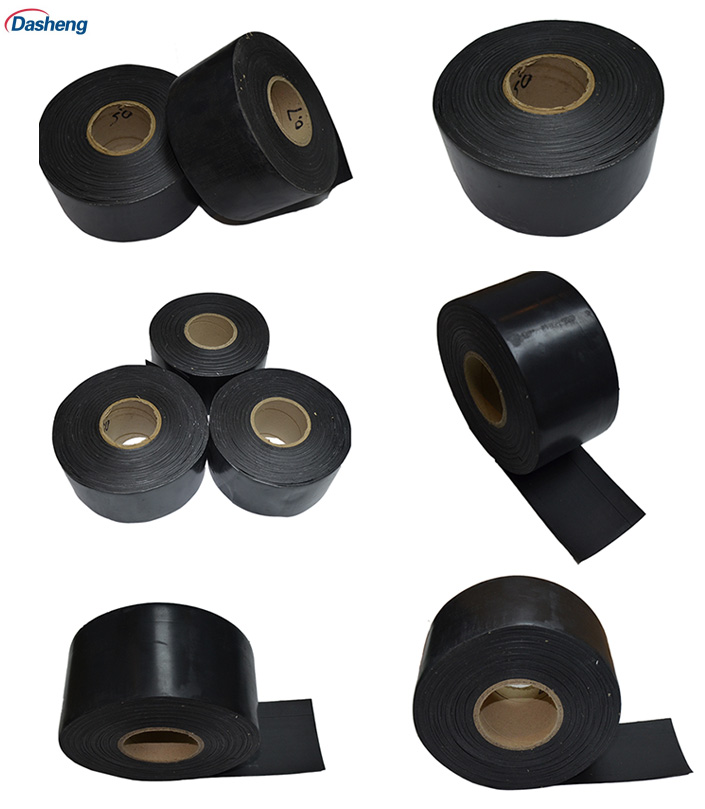

| T400 Cold-applied 3ply Tape |
|
|
 |
For corrosion protection of oil, gas, petrochemical, and waste water underground or overhead pipelines.
Product description:
Construction: four-layer system
Internal Adhesive layer: Butyl rubber
External Adhesive layer: Butyl rubber
Film backing: Special blend of stabilized polyolefines
Interleaf: Anti-adhesive film treated with silicone
The installation is carried out after the liquid adhesive and before the outer-layer tape by hand or with a wrapping machine
|
| Product features/benefits: |
•Excellent bonding between adhesive and carrier film via co-extruded intermediate layer.
•Mechanically highly resistant tape system.
•Practically impermeable to water vapour and oxygen.
•Resistant to soil bacterial and soil electrolyte.
•Compatible with coating from PE, PP, FBE, PU, CTE and Bitumen and ext… .
•A Total Coating System with:
High adhesion and shear resistance
Resistance to corrosion disbondment
High electrical resistance
High dielectric strength
High corrosion protection for steel substrates |
|
3ply tape
|
T480, T4100
|
|
Physical Properties
|
Test Method
|
T480 Typical Value
|
|
English
|
Metric
|
|
Color film backing
Adhesive inner layer
Adhesive outer layer
|
--
|
black(grey/green)
black
black
|
|
Thickness Carrie film
Internal Adhesive
External Ahesive
|
ASTM D 1000
|
12.0 mil
13.6 mil
6.4 mil
|
0.30mm
0.34 mm
0.16 mm
|
|
Total thickness
|
32.0 mil
|
0.80 mm
|
|
Tensile strength
|
ASTMD1000
|
70 lbs/in
|
120 N/cm
|
|
Elongation at break
|
ASTMD1000
|
650%
|
|
Peel strength to primed steel at 23 ℃ at 50℃
|
EN 12068
Annex C
|
274.5 lbs/in
137.1 lbs/in
|
30 N/cm
15 N/cm
|
|
Peel strength tape to tape at 23 ℃
at 50℃
|
EN 12068
Annex B
|
228 lbs/in
32 lbs/in
|
25 N/cm
3.5 N/cm
|
|
Dielectric strength
|
ASTMD149
|
35 Kv
|
|
Insulation??? Resistance
|
EN 12068
|
108 ohm·m2
|
|
Water Vapor Transmission Rate （24h）
|
ASTM E 96
|
0.01g/100sq in/24h
|
0.1g/100sq mm/24h
|
|
Brittleness temperature
|
DIN53372
|
-51±39
|
-46±4 ℃
|
|
Water Absorption
|
ASTM D 570
|
0.08 %
|
|
Impact resistance at 23’’
|
EN 12068
|
15 J
|
|
Cathodic disbandment at 23°c
at 50°c
|
EN 12068
|
15 mm
30 mm
|
|
Lap shear strength at 50℃
|
EN 12068
|
0.05 N/mm2
|
| All information contained in this technical data sheet is to be used as a guide and is subject to change without notice. Products can be produced according to given specification. Please contact us for further information and confirmation. |
|
|
|
