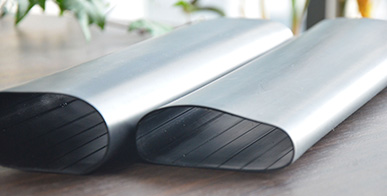

| WMTM Medium-wall heat shrink tube |
|
|
 |
Application:：
Medium-wall heat shrink tube is made of semi-rigid polyolefin, with or without adhesive lining. It is designed for applications to seal or protect electrical splices, cable terminations and joints where electrical insulation and waterproof are required. 3:1 shrink ratio allows it easily fit over irregular shape and large connectors.
|
| Optional hot melting adhesive liner for complete environmental protection and insulation. |
| Product Features/Benefits: |
- Shrink Ratio: 3.5:1
- Operating Temperature: -45℃ to 125℃
- Seals and protects cable splices and terminations
- High resistance to impact and abrasion
- Work voltage up to 24KV
- Standard color: black, more colors are available upon request |
| Property |
Test Method |
Standard |
| Tensile Strength(Mpa) |
ASTM D2671 |
≥10.4 |
| Elongation(%) |
ASTM D2671 |
≥300 |
| Density(g/cm3) |
ASTM D792 |
1.2 |
| Longitudinal change(%) |
UL 224 |
≤±10 |
| Elongation after aging(%) |
UL224 158℃*168hrs |
≥200 |
| Heat shock |
UL224 225℃*4hrs |
No cracking |
| Dielectric strength(kv/mm) |
IEC 243 |
≥20 |
| Volume resistivity(Ω.cm) |
IEC 93 |
≥1014 |
| Water absorption(%) |
ASTM-D570 |
≤0.5 |
| Hot Melting Adhesive Property: |
| Property
|
Test Method
|
Standard
|
|
Water absorption
|
ASTM D570
|
≤0.2%
|
|
Softening point
|
ASTM E28
|
95℃
|
|
Peel strength(PE)
|
ASTM D1000
|
120N/25mm
|
|
Peel strength(AL)
|
ASTM D1000
|
80N/25mm
|
| |
| Specifications(All dimensions are in mm): |
|
Size
|
Before shrink
|
After shrink
|
Standard package
|
|
|
Inner diameter (D)
|
Inner diameter (d)
|
Wall thickness (W)
|
|
| 30/12
|
30
|
8
|
2.5
|
1000/1200
|
| 35/12
|
35
|
12
|
2.5
|
1000/1200
|
| 50/16
|
50
|
16
|
2.7
|
1000/1200
|
| 63/19
|
63
|
19
|
2.8
|
1000/1200
|
| 75/22
|
75
|
22
|
3
|
1000/1200
|
| 85/25
|
85
|
25
|
3
|
1000/1200
|
| 95/25
|
95
|
25
|
3
|
1000/1200
|
| 115/34
|
115
|
34
|
3
|
1000/1200
|
| 140/42
|
140
|
42
|
3
|
1000/1200
|
| 160/50
|
160
|
50
|
3.5
|
1000/1200
|
| 180/60
|
180
|
60
|
3.5
|
1000/1200
|
| 200/65
|
200
|
65
|
3.5
|
1000/1200
|
| 235/65
|
235
|
65
|
3.5
|
1000/1200
|
|
*Customized dimensions are available on request
|
|
|
|
