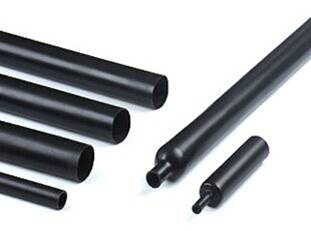

YLG Heat-shrinkable stress control tubing Application: Mainly used on terminal and splices of power cable in low voltage.
Product Facts:
●Excellent stress control performance. ●Very good UV resistance. ●Standard color: black ●Regular size:1m, 1.2m
Installation:
Full shrink temperature: 130°C Applicable voltage: ≤3KV Specification (mm)
Terminal&splices:
No.
Items
Unit
Specification
1
Shrink temperature
℃
120±10
2
Tensile strength
MPa
³11.0
3
Elongation at break
％
³240
4
Density (20℃)
Kg/m3
1.24´103
5
Hardness
Shore A
<80
6
Water absorption
％
< 0.5
7
Heat shock resistance
200±2℃/4h
No drop and no flow
8
Low temperature
flexibility
-55±2℃/4h
No crack
9
Volume resistant
W.cm
109 ~1011
10
Dielectric constant
18~30
11
Performance after heat
aging
Mpa
％
≥9.0
≥300
12
Eccentricity
%
≤30
Specification (mm):
Specification
Inside diameter before shrink
Inside diameter after shrink
Wall thickness after shrink
30/12
30
12
2.1±0.2
35/15
35
15
2.4±0.2
40/18
40
18
2.5±0.2
50/20
50
20
2.5±0.2
60/26
60
25
2.6±0.2
Dimensions are shown for reference purpose only. Specification subject to change. Products can be produced according to given specification. Please contact us for further information and confirmation.
