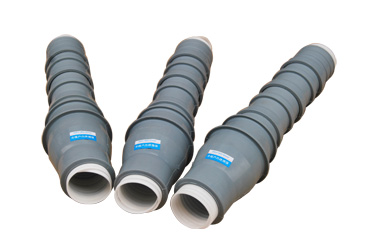

26/35KV Cold-shrinkable terminal and splices for power cable: Widely used in the following fields: electric power, communication, war industry ,metallurgy, mining and petroleum chemical industry ,etc

Product Facts:

● Excellent raw material: prefabricated body is composed of high-elasticity silicon rubber, which has excellent insulation, elongation and breakdown properties, small residual deformation after expansion. ● Cold-shrinkable construction: using latest expansion equipment and expansion support tube to ensure product expand without damage. ●Easy installation: Cold-applied, no need fire or special tool, no need to joint or bind copper wire. It can save labor force, time and space.

Specification of terminal:

Product name	Test item	Standard requirement	Result	Remarks
35KV indoor/ outdoor terminal and splices	Power frequency voltage withstand test	Under 105kv, within 1min, no flash and no breakdown	Under 105kv, within 1min, no flash and no breakdown	Qualified
	Test of partial discharge	Under 39kv, discharge capacity≤10 pC	Under 39kv, discharge capacity is 4 pC	Qualified
	Load circulation test	5h heated, 3h cooled, conductor heated to 95-100℃, 8h per circulation	5h heated, 3h cooled, conductor heated to 95-100℃, 8h per circulation
	Partial voltage test	Under 39kv, discharge capacity≤10 pC	Under 39kv, discharge capacity is 4 pC	Qualified
	Impulse voltage test	Under 250kv,on negative and positive poles applied 10times each, no flash and no breakdown	Under 250kv, no flash and no breakdown	Qualified
	DC voltage test of the negative pole	156KV, 15min no flash and no breakdown	156KV,15min no flash and no breakdown	Qualified
	Power frequency voltage test	104KV, 4h no flash and no breakdown	104KV, 4h no flash and no breakdown	Qualified

Specification:

Product name	Mode＆specification	The applicable section (㎜² )
26/35KV one-core indoor terminal	NLY-35/1.1	35-70
	NLY-35/1.2	95-150
	NLY-35/1.3	185-300
	NLY-35/1.4	400-500
	NLY-35/1.5	630
26/35KV one-core cold outdoor terminal	WLY-35/1.1	25-50
	WLY-35/1.2	70-120
	WLY-35/1.3	150-240
	WLY-35/1.4	300-400
	WLY-35/1.5	3630
26/35KV one-core splices	JLY-35/1.1	25-50
	JLY-35/1.2	70-120
	JLY-35/1.3	150-240
	JLY-35/1.4	300-400
	JLY-35/1.5	630
26/35KV three-core indoor terminal	NLY-35/3.1	25-50
	NLY-35/3.2	70-120
	NLY-35/3.3	150-240
	NLY-35/3.4	300-400
	NLY-35/3.5	630
26/35KV three-core cold outdoor terminal	WLY-35/3.1	25-50
	WLY-35/3.2	70-120
	WLY-35/3.3	150-240
	WLY-35/3.4	300-400
	WLY-35/3.5	630
26/35KV three-core splices		25-50
	JLY- 35/3.2	70-120
	JLY-35/3.3	150-240
	JLY-35/3.4	300-400
	JLY-35/3.5	630

Dimensions are shown for reference purpose only. Specification subject to change. Products can be produced according to given specification. Please contact us for further information and confirmation.
