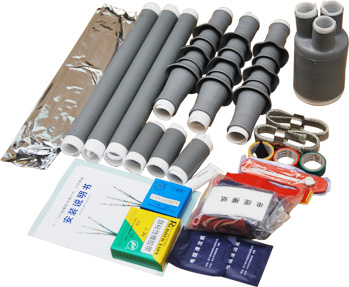

| 8.7/15KV Cold-shrinkable terminal and splices for power cable |
|
|
 |
8.7/15KV Cold-shrinkable terminal and splices for power cable Application:
Widely used in the following fields: electric power, communication, war industry ,metallurgy, mining and petroleum chemical industry ,etc
|
● Excellent raw material: prefabricated body is composed of high-elasticity silicon rubber, which has excellent insulation, elongation and breakdown properties, small residual deformation after expansion.
● Cold-shrinkable construction: using latest expansion equipment and expansion support tube to ensure product expand without damage.
●Easy installation: Cold-applied, no need fire or special tool, no need to joint or bind copper wire. It can save labor force, time and space.
|
| Specification of terminal: |
| Product name |
Test item |
Standard requirement |
Result |
Remarks |
| 8.7/15KV indoor/outdoor terminal and splices |
Power frequency voltage withstand test |
under 45kv, within 1min. no flash and no breakdown |
under 45kv, within 1min. no flash and no breakdown |
Qualified |
| Test of partial discharge |
13kv,≤20pC |
13kv,3pC |
Qualified |
| Load circulation test |
5h heated, 3h cooled.conductor heated to 95℃ |
Conductor heated to 90-95℃,total 3 circulations |
|
| Partial discharge test |
13kv,≤20pC |
13kv, 3pC |
Qualified |
| Impulse voltage test |
Under105kv,on negative and positive poles applied 10times each, no flash and no breakdown |
Under 105kv, no flash and no breakdown |
Qualified |
| Test of the negative pole |
52KV，15min no flash and no breakdown |
52KV，15min no flash and no breakdown |
Qualified |
| 4h power frequency voltage test |
35KV，4h no flash and no breakdown |
35KV，4h no flash and no breakdown |
Qualified |
| Product mane |
Mode＆specification |
Applicable section (㎜² ) |
| 8.7/15KV one-core indoor terminal |
TNPE-NLY-10 /1.1 |
25-50 |
| TNPE-NLY-10 /1.2 |
70-120 |
| TNPE-NLY-1 0/1.3 |
150-240 |
| TNPE-NLY-1 0/1.4 |
300-400 |
| 8.7/15KV one-core cold outdoor terminal |
TNPE-WLY-10 /1.1 |
25-50 |
| TNPE-WLY-10 /1.2 |
70-120 |
| TNPE-WLY-10/ 1.3 |
150-240 |
| TNPE-WLY-10/ 1.4 |
300-400 |
| 8.7/15KV one-core splices |
TNPE-JLY- 10 / 1.1 |
25-50 |
| TNPE-JLY- 10 / 1.2 |
70-120 |
| TNPE-JLY- 10 / 1.3 |
150-240 |
| TNPE-JLY- 10 / 1.4 |
300-400 |
| 8.7/15KV three-core indoor terminal |
TNPE-NLY-10 / 3.1 |
25-50 |
| TNPE-NLY-10 / 3.2 |
70-120 |
| TNPE-NLY-1 0/ 3.3 |
150-240 |
| TNPE-NLY-1 0/ 3.4 |
300-400 |
| 8.7/15KV three-core cold outdoor terminal |
TNPE-WLY-10 / 3.1 |
25-50 |
| TNPE-WLY-10 /3.2 |
70-120 |
| TNPE-WLY-10/ 3.3 |
150-240 |
| TNPE-WLY-10/3.4 |
300-400 |
| 8.7/15KV three-core splices |
TNPE-JLY- 10 / 3.1 |
25-50 |
| TNPE-JLY- 10 / 3.2 |
70-120 |
| TNPE-JLY-10 / 3.3 |
150-240 |
| TNPE-JLY-10 / 3.4 |
300-400 |
Dimensions are shown for reference purpose only. Specification subject to change. Products can be produced according to given specification. Please contact us for further information and confirmation.
| |
|
|
