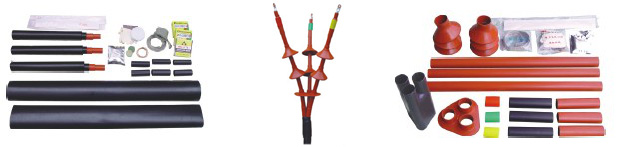

● This product has two offerings: one-core and three-core. General length of insulation tubing of terminal is 650mm, which can be lengthened to 800mm, 1000mm and 1200mm as required.
●Terminal: The applied process of double ground wires makes the cable margin more reasonable.
●Splices: Three-sealing process, that is to seal both sheath and inner cover and to seal two side of inner insulation tubing, ensures the cable more safe and reliable.
|
| Specification of terminal: |
| Items |
Test item |
Standard requirement |
Test result |
Conclusion |
| 15kv outdoor/indoor terminal and splices |
Power frequency voltage withstand test |
45kv/min, no flash, no breakdown |
45kv/min, no flash, no breakdown |
Qualified |
| Partial discharge test |
13kv,≤20pc |
13kv, 2pc |
Qualified |
| Load circulation test (3 circulations) |
5h heated, 3h cooled, the temperature of conductor is 95℃ while heating |
See below |
|
| Partial discharge test |
13kv,≤20pc |
13kv, 2pc |
Qualified |
| Impulse voltage test |
105kv，commit 10 times respectively on positive and negative pole，one flash is permitted, but will not be counted to the total test times |
105kv, no flash, no breakdown. |
Qualified |
| Negative pole direct voltage test |
52kv/15min， no flash, no breakdown |
52kv/15min, no flash, no breakdown |
Qualified |
| 4hPower frequency voltage test |
35kv/4h, no flash, no breakdown |
35kv/4h, no flash, no breakdown |
Qualified |
| Specification of splices: |
| Product name |
Models |
Applicable cable section (mm2) |
| 10kv three-core indoor terminal |
NRSY-10/3.1 |
25-50 |
| NRSY-10/3.2 |
70-120 |
| NRSY-10/3.3 |
150-240 |
| NRSY-10/3.4 |
300-400 |
| 10kv three-core outdoor terminal |
WRSY-10/3.1 |
25-50 |
| WRSY-10/3.2 |
70-120 |
| WRSY-10/3.3 |
150-240 |
| WRSY-10/3.4 |
300-400 |
| 10kv three-core splices |
JRSY-10/3.1 |
25-50 |
| JRSY-10/3.2 |
70-120 |
| JRSY-10/3.3 |
150-240 |
| JRSY-10/3.4 |
300-400 |
| Specification of splices: |
| Product name |
Models |
Applicable cable section (mm2) |
| 10kv three-core indoor terminal for oiled cable |
NRSZ-10/3.1 |
25-50 |
| NRSZ-10/3.2 |
70-120 |
| NRSZ-10/3.3 |
150-240 |
| NRSZ-10/3.4 |
300-400 |
| 10kv three-core outdoor terminal for oiled cable |
WRSZ-10/3.1 |
25-50 |
| WRSZ-10/3.2 |
70-120 |
| WRSZ10/3.3 |
150-240 |
| WRSZ-10/3.4 |
300-400 |
| 10kv three-core splices for oiled cable |
JRSZ-10/3.1 |
25-50 |
| JRSZ-10/3.2 |
70-120 |
| JRSZ-10/3.3 |
150-240 |
| JRSZ-10/3.4 |
300-400 |
Dimensions are shown for reference purpose only. Specification subject to change. Products can be produced according to given specification. Please contact us for further information and confirmation.
| |
