| 125H2-CB Single wall tubing Very-thin-wall, halogen-free, highly flame-retardant, heat-shrinkable tubing |
|
|
 |
125H2-CB Single wall tubing Very-thin-wall, halogen-free, highly flame-retardant, heat-shrinkable tubing
Application:

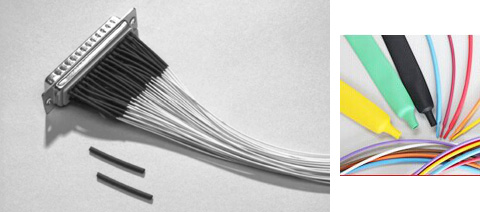

Typically used where space saving is important. Offers the ability to pack components more closely than is possible with standard tubings. Cost-effective choice for many commercial applications; electrically insulates and protects in-line components, disconnect terminals, and splices. Used for strain relief on high-density connectors.
|
|
●2:1 shrink ratio
●Very thin wall provides space savings and rapid shrinking
●Low shrink temperature further reduces installation time and risk of damage to temperature-sensitive components
●Very flexible; doesn’t easily wrinkle when bent
●Free of polybrominated biphenyls (PBBs) and polybrominated biphenyloxides and ethers (PBBOs and PBBEs), which are classified as environmentally hazardous substances
|
|
UL224 CAN/CSA C22.2 NO198.1-99
|
| Environmental protection standard: |
|
RoHs, IPC/JEDEC-J-STD-709, H-class material
|
| Table 1 of Specification: |
|
Specification |
Inside diameter as supplied |
Maximum recovered after heating (mm) |
Standard package(m/set) |
|
|
|
Inside diameter |
Wall thickness |
|
|
ø1.0CB |
1.40±0.20 |
≤0.65 |
0.20±0.10 |
200 |
|
ø1.5CB |
1.90±0.20 |
≤0.85 |
0.20±0.10 |
200 |
|
ø2.0CB |
2.40±0.20 |
≤1.00 |
0.22±0.10 |
200 |
|
ø2.5CB |
2.90±0.20 |
≤1.30 |
0.25±0.10 |
200 |
|
ø3.0CB |
3.40±0.20 |
≤1.50 |
0.28±0.10 |
200 |
|
ø3.5CB |
3.90±0.20 |
≤1.80 |
0.28±0.10 |
200 |
|
ø4.0CB |
4.40±0.20 |
≤2.00 |
0.30±0.10 |
200 |
|
ø4.5CB |
4.90±0.20 |
≤2.30 |
0.30±0.10 |
100 |
|
ø5.0CB |
5.50±0.20 |
≤2.50 |
0.32±0.10 |
100 |
|
Ø6.0CB |
6.50±0.20 |
≤3.00 |
0.32±0.10 |
100 |
|
Ø7.0CB |
7.50±0.30 |
≤3.50 |
0.32±0.10 |
100 |
|
Ø8.0CB |
8.50±0.30 |
≤4.00 |
0.32±0.10 |
100 |
|
Ø9.0CB |
9.50±0.30 |
≤4.50 |
0.35±0.10 |
100 |
|
ø10CB |
10.50±0.30 |
≤5.00 |
0.35±0.10 |
100 |
|
Ø11CB |
11.50±0.30 |
≤5.50 |
0.40±0.10 |
100 |
|
Ø12CB |
12.50±0.30 |
≤6.00 |
0.40±0.10 |
100 |
|
Ø13CB |
13.50±0.30 |
≤6.50 |
0.40±0.10 |
100 |
| Table 2 of Specification: |
|
Specification |
Inside diameter as supplied |
Maximum recovered after heating (mm) |
Standard package(m/set) |
|
|
|
Inside diameter |
Wall thickness |
|
|
ø14CB |
14.50±0.30 |
≤7.00 |
0.40±0.10 |
100 |
|
Ø15CB |
15.50±0.40 |
≤7.50 |
0.40±0.10 |
100 |
|
Ø16CB |
16.50±0.40 |
≤8.00 |
0.40±0.10 |
100 |
|
Ø17CB |
17.50±0.40 |
≤8.50 |
0.40±0.10 |
100 |
|
Ø18CB |
18.50±0.40 |
≤9.00 |
0.42±0.10 |
100 |
|
ø20CB |
20.50±0.50 |
≤10.0 |
0.45±0.10 |
100 |
|
Ø22CB |
22.50±0.50 |
≤11.0 |
0.45±0.10 |
100 |
|
Ø25CB |
25.50±0.50 |
≤12.5 |
0.45±0.10 |
50 |
|
Ø28CB |
28.50±0.50 |
≤14.0 |
0.45±0.10 |
50 |
| Ten choices of color in international standard, like black, red, yellow, green, blue and etc. | |
|
|
