Application:：

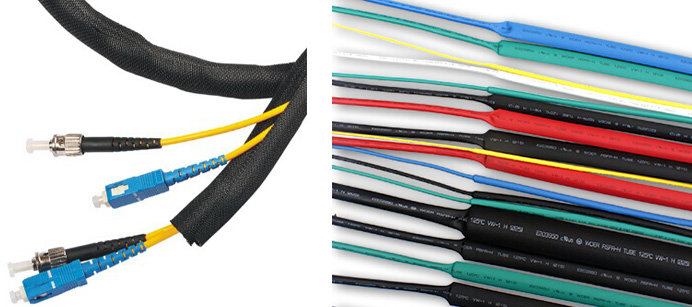

HST-135G is a tough, flexible, general purpose polyolefin tubing with good resistance to common fluids and solvents and a high dielectric strength. Its unique blend of chemical, electrical, and physical properties makes it suitable for a wide range of applications, including electrical insulation, strain relief, cable bundling, color-coding and identification of wires, cables, pipes, and electrical and electronic components, and mechanical protection.

Specification

Inside diameter as supplied

Maximum size after shrink (mm)

Standard package (m/set)

Inside diameter

Wall thickness

ø1.0/0.65

1.5±0.2

≤0.65

0.36±0.10

200

ø1.5/0.85

2.0±0.2

≤0.85

0.36±0.10

200

ø2.0/1.00

2.5±0.2

≤1.00

0.45±0.10

200

ø2.5/1.30

3.0±0.2

≤1.30

0.45±0.10

200

ø3.0/1.50

3.5±0.2

≤1.50

0.45±0.10

200

ø3.5/1.80

4.0±0.2

≤1.80

0.45±0.10

200

ø4.0/2.00

4.5±0.2

≤2.00

0.45±0.10

200

ø4.5/2.30

5.0±0.2

≤2.30

0.45±0.10

200

ø5.0/2.50

5.5±0.2

≤2.50

0.56±0.10

100

ø5.5/2.75

6.0±0.2

≤2.75

0.56±0.10

100

ø6.0/3.00

6.5±0.2

≤3.00

0.56±0.10

100

ø7.0/3.50

7.5±0.3

≤3.50

0.56±0.10

100

ø8.0/4.00

8.5±0.3

≤4.00

0.56±0.10

100

ø9.0/4.50

9.5±0.3

≤4.50

0.56±0.10

100

ø10/5.00

10.5±0.3

≤5.00

0.56±0.10

100

ø11/5.50

11.5±0.3

≤5.50

0.56±0.10

100

ø12/6.00

12.5±0.3

≤6.00

0.56±0.10

100

ø13/6.50

13.5±0.3

≤6.50

0.70±0.10

100

ø14/7.00

14.5±0.3

≤7.00

0.70±0.10

100

ø15/7.50

15.5±0.4

≤7.50

0.70±0.10

100

ø16/8.00

16.5±0.4

≤8.00

0.70±0.10

100

ø17/8.50

17.5±0.4

≤8.50

0.70±0.10

200

ø18/9.00

19.0±0.5

≤9.00

0.70±0.10

100

ø20/10.0

22.0±0.5

≤10.0

0.80±0.15

100

ø22/11.0

24±0.5

≤11.0

0.80±0.15

100

ø25/12.5

26±0.5

≤12.50

0.90±0.15

50

ø28/14.0

29±0.5

≤14.0

0.90±0.15

50

ø30/15.0

31.5±1.0

≤15.0

1.00±0.15

50

ø35/17.5

36.5±1.0

≤17.5

1.00±0.15

50

ø40/20.0

41.5±1.0

≤20.0

1.00±0.15

50

ø50/25.0

≥50

≤25.0

1.10±0.15

25

ø60/30.0

≥60

≤30.0

1.20±0.15

25

ø70/35.0

≥70

≤35.0

1.30±0.15

25

ø80/40.0

≥80

≤40.0

1.30±0.20

25

ø90/45.0

≥90

≤45.0

1.30±0.20

25

ø100/50.0

≥100

≤50.0

1.30±0.20

25

ø120/60.0

≥120

≤60.0

1.30±0.20

25

ø150/75.0

≥150

≤75.0

1.30±0.20

25

ø180/90.0

≥180

≤90.0

1.30±0.20

25

Specification

Inside diameter as supplied

Maximum size after shrink (mm)

Standard package (m/set)

Inside diameter

Wall thickness

1.5/0.5

≥1.50

≤0.5

0.45±0.10

200

3.0/1.0

≥3.00

≤1.0

0.55±0.10

200

4.5/1.5

≥4.50

≤1.5

0.60±0.10

100

6.0/2.0

≥6.00

≤2.0

0.65±0.10

100

9/3

≥9.00

≤3.0

0.75±0.15

50

12/4

≥12.0

≤4.0

0.75±0.15

50

15/5

≥15.0

≤5.0

0.80±0.15

50

18/6

≥18.0

≤6.0

0.85±0.15

50

24/8

≥24.0

≤8.0

1.00±0.20

25

30/10

≥30.0

≤10.0

1.15±0.20

25

39/13

≥39.0

≤13.0

1.50±0.20

25

50/16

≥50.0

≤16.0

2.50±0.20

25

60/20

≥60.0

≤20.0

2.60±0.20

25

70/23

≥70.0

≤23.0

2.60±0.20

25

80/26

≥80.0

≤26.0

2.60±0.20

25

90/30

≥90.0

≤30.0

2.60±0.20

25

100/33

≥100.0

≤33.0

2.60±0.20

25

Specification

Inside diameter as supplied

Maximum size after shrink (mm)

Inside diameter

Wall thickness

ø4/1

≥4.1

≤1.0

0.7

ø6/1.5

≥6.1

≤1.5

0.78

ø8/2

≥8.1

≤2.0

0.8

ø10/2.5

≥10.1

≤2.5

0.85

ø12/3

≥12.1

≤3.0

0.90

ø16/4

≥16.1

≤4.0

1.00

ø19.1/4.6

≥19.2

≤4.7

1.20

ø25.4/6.5

≥25.5

≤6.3

1.25

ø30/7.5

≥30.1

≤7.5

1.25

ø38.1/9.5

≥38.2

≤9.5

1.30

ø51/13

≥51.1

≤12.7

1.35
