Application:：

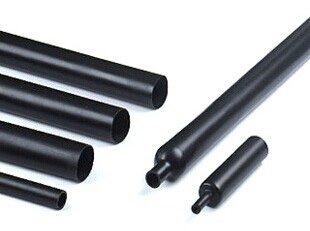

Provides very-thin-wall insulation and strain relief of multipin connectors, solder joints and other delivate electrical connections and terminations. It is well-suited for applications that require dense packing of components such as downhole sensors. Provides superior chemical and solvent resistance when used for bundling and jacketing of wires and cables. Suitable for applications requiring low outgassing materials such as wire bundling and label protection in satellites.

Specification

Inside diameter as supplied

Maximum size (mm)

Tubing shape

Standard package(m/set)

Metric

English

mm

Inside diameter

Wall thickness

Φ3.2

1/8

≥3.2

≤1.6

0.76±0.20

Round

200

Φ4.8

3/16

≥4.8

≤2.4

0.89±0.20

 Round

100

Φ6.4

1/4

≥6.4

≤3.2

0.89±0.20

 Round

100

Φ9.5

3/8

≥9.5

≤4.8

0.89±0.20

Flat

50

Φ12.7

1/2

≥12.7

≤6.4

0.89±0.20

Flat

30

Φ19.0

3/4

≥19.0

≤9.5

1.07±0.30

Flat

30

Φ25.4

1

≥25.4

≤12.7

1.25±0.30

Flat

30

Φ38.1

1-1/2

≥38.1

≤19.1

1.40±0.30

Flat

15

Φ50.8

2

≥51

≤25.4

1.65±0.30

Flat

15
